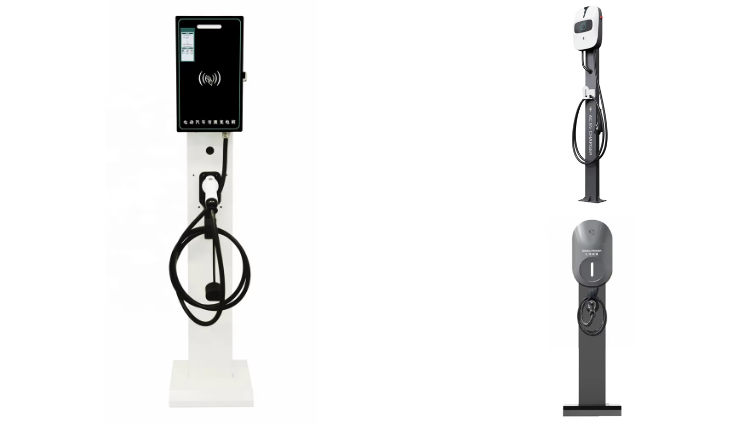

22kw AC charging pile parameter
| Category | specifications | Data parameters |
| Appearance Structure | Dimensions (L x D x H) | 270*110*1365 (Column) |
| Weight | 5.4kg | |
| Length of charging cable | 3.5m | |
| Electrical Indicators | Connectors | Type1 || Type2 || GBT |
| Input Voltage | 380 VAC | |
| Input frequency | 50/60Hz | |
| Output Voltage | 380 VDC | |
| Output current | 32A | |
| rated power | 22KW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional design | Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Work Environment | Power Electronics Cooling | Natural Cooled |
| Operating temperature | -30 °C to 55°C | |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP65 | |
| Safety Design | Safety standard | GB/T,Type2,Type1,CHAdeMo,NACS |
| Safety protection | Overvoltage protection, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
22kw AC electric car charger features
- High-Speed Three-Phase AC Charging (22kW Output): Delivers a powerful 380V, 32A three-phase output, enabling a rapid Level 2 charge that is significantly faster than standard home charging.
- Universal European/Asian Compatibility (Type 2 Standard): Features the internationally standardized Type 2 (IEC 62196-2) connector, ensuring broad compatibility with the majority of electric vehicles, especially in Europe and a growing number of Southeast Asian markets.
- Robust Floor-Mounted / Pedestal Design: Constructed as a durable, free-standing charging pile (charging station), making it suitable for secure and permanent installation in public, commercial (fleet/workplace), or dedicated residential parking areas.
- Optimized for Commercial and Public Use (380V/Three-Phase): The high voltage and three-phase power configuration is ideal for maximizing efficiency and throughput in commercial environments, minimizing vehicle downtime.
- Weatherproof and Safe for Outdoor Installation: Typically features a high ingress protection (IP) rating (e.g., IP54 or higher) and integrated electrical protections (such as overcurrent, overvoltage, and short-circuit protection) suitable for an outdoor, all-weather installation.
