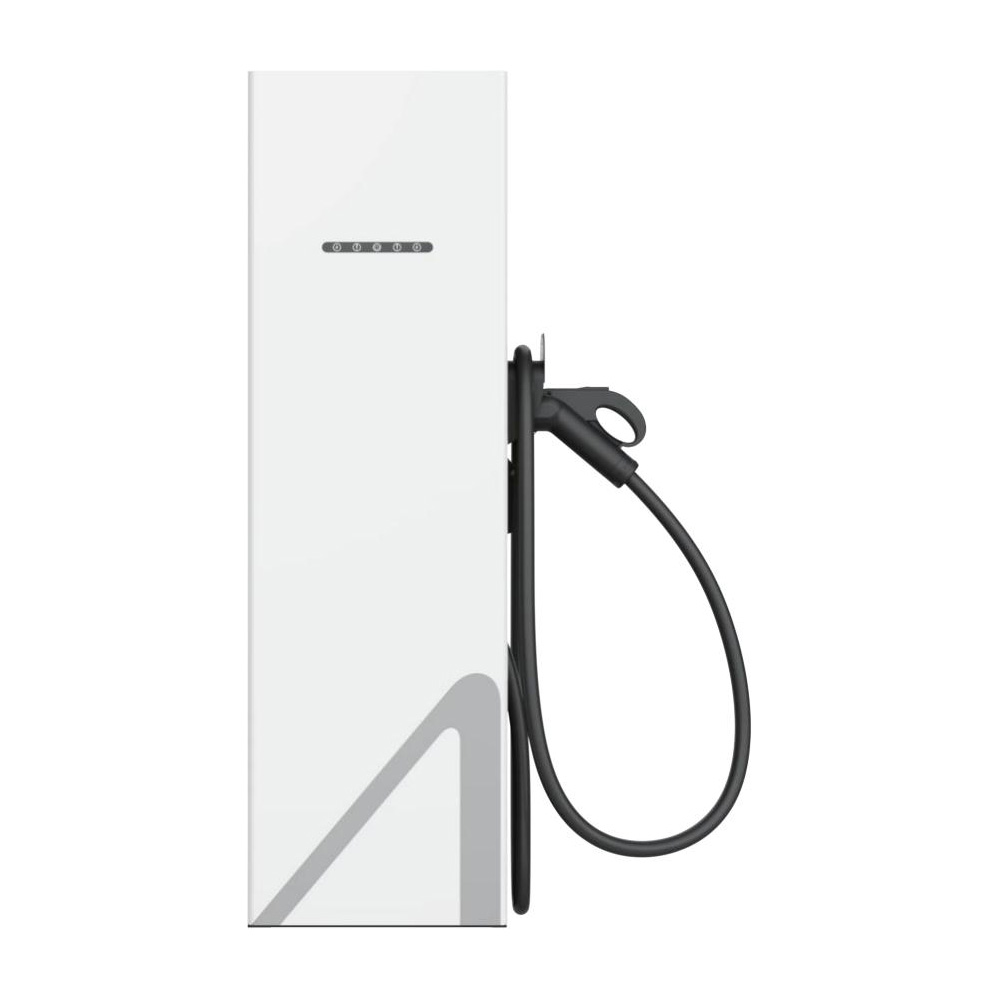

| Appearance structure | Dimensions (L x D x H) | 500mm x 300mm x 1650mm |
| Weight | 92kg |
| Length of charging cable | 5m |
| Electrical indicators | Connectors | CCS2 || GBT * Single |
| Output Voltage | 200 - 1000VDC |
| Output current | 0 to 1200A |
| Insulation (input - output) | >2.5kV |
| Efficiency | ≥94% at nominal output power |
| Power factor | >0.98 |
| Communication protocol | OCPP 1.6J |
| Functional design | Display | Customize according to requirements |
| RFID system | ISO/IEC 14443A/B |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) |
| Communication | Ethernet – Standard || 3G/4G Modem (Optional) |
| Power Electronics Cooling | Air Cooled |
| Work environment | Operating temperature | -30 °C to 55°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) |
| Altitude | < 2000m |
| Ingress Protection | IP55 || IK10 |
| safety design | Safety standard | GB/T 18487 2023, GB/T 20234 2023, GB/T 27930 |
| Safety protection | Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc |
| Emergency Stop | Emergency Stop Button Disables Output Power |
