Top-quality EV Fast Charger Station 120kw-180kw Direct From Factory

EV Fast Charger Station: Paving the Way for the Future of Electric Mobility CCS2/Chademo/Gbt EV DC Charger (60kw 80kw 120kw 160kw 180kw 240kw) One of the best things about this charger station is that it supports multiple charging standards, including CCS2, Chademo, and Gbt. This versatility means that a wide range of electric vehicles, no matter what brand or model, can be charged at the station. CCS2 is a popular standard in Europe and many other regions. It offers a seamless and efficient charging experience. Chademo is used a lot in Japan and some other markets. Gbt also contributes to the station's ability to accommodate diverse EV fleets. This compatibility not only provides convenience to EV owners but also promotes interoperability and standardization within the EV ecosystem. What sets this station apart from many conventional chargers is that it offers 120kW, 160kW, and 180kW charging options. These high power levels mean you can charge in a lot less time. For instance, an electric vehicle with a medium-sized battery pack can get a big charge in just a few minutes, instead of hours. A 120kW charger can add a lot of range in a short time, while the 160kW and 180kW versions can even speed up the charging process even more. This is a big deal for EV drivers who are on long trips or have tight schedules and don't have time to wait around for their vehicles to charge. It gets around the "range anxiety" issue that has been holding some potential EV adopters back, and makes electric vehicles a more viable option for a broader range of applications, including commercial fleets and long-distance travel. The floor-standing charging pile design offers several practical benefits. It is highly visible and easily accessible, making it convenient for EV drivers to locate and use. The sturdy floor-mounted structure provides stability and durability, ensuring reliable operation even in various environmental conditions. Installation of such floor-standing chargers can be strategically planned in public parking lots, highway rest areas, shopping centers, and other high-traffic locations. Their prominent presence can also serve as a visual cue, promoting the awareness and acceptance of electric vehicles among the general public. Additionally, the floor-standing design allows for easier maintenance and servicing, as technicians have convenient access to the charging components and can perform routine inspections and repairs more efficiently. In a nutshell, the EV Fast Charger Station with CCS2/Chademo/Gbt EV DC Chargers and its different power options and floor-standing design is a game-changer in the electric vehicle charging landscape. It's not just about meeting the current charging needs of EV owners. It's also about paving the way for a more sustainable and efficient future of transportation. EV Fast Charger Station is a highly capable charging facility for electric vehicles. It is equipped with DC chargers that support multiple charging interface standards such as CCS2, Chademo, and Gbt.

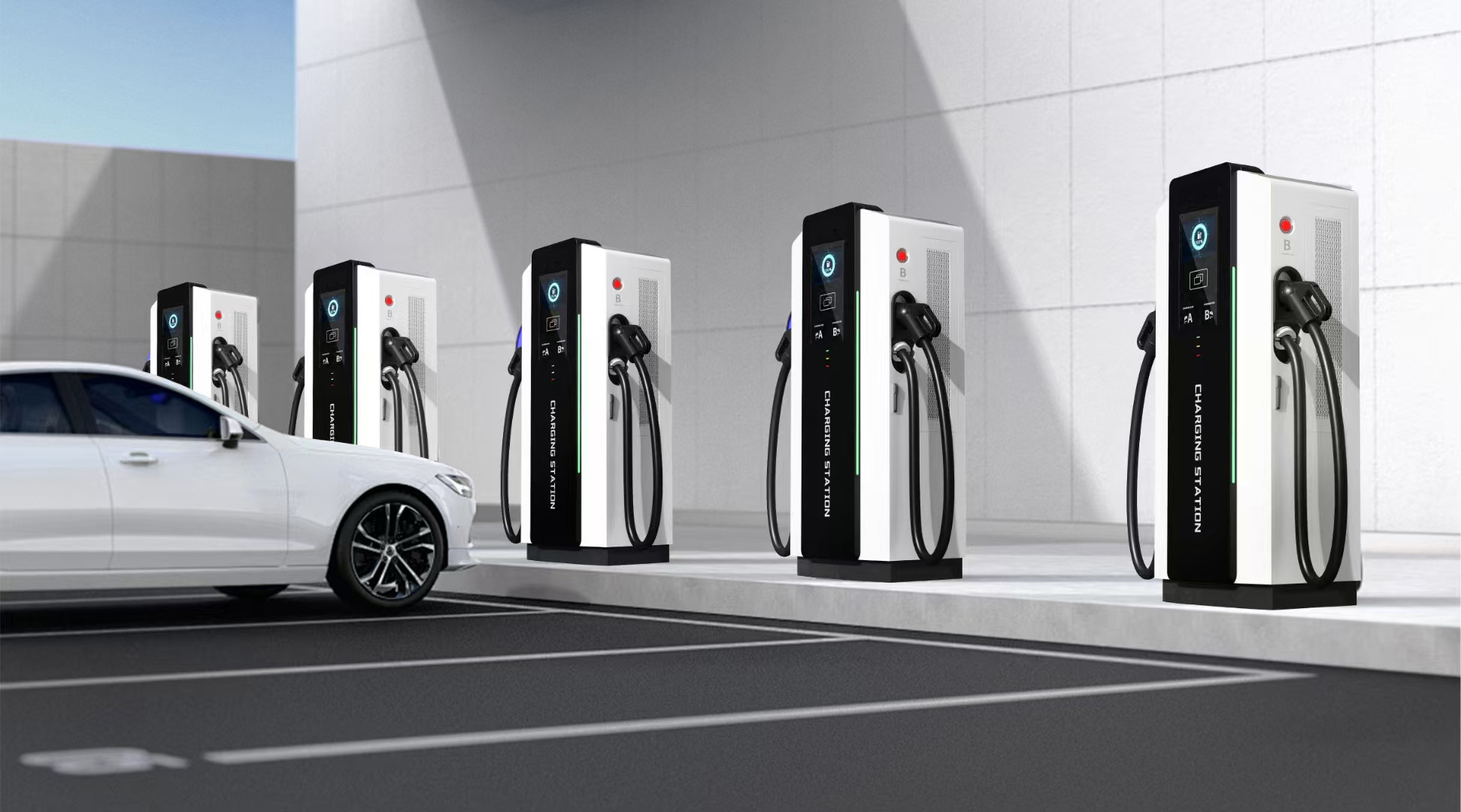

EV Fast Charger Station is a highly capable charging facility for electric vehicles. It is equipped with DC chargers that support multiple charging interface standards such as CCS2, Chademo, and Gbt.

Car Charger Paramenters

Model Name	HDRCDJ-40KW-2	HDRCDJ-60KW-2	HDRCDJ-80KW-2	HDRCDJ-120KW-2	HDRCDJ-160KW-2	HDRCDJ-180KW-2
AC Nominal Input
Voltage(V)	380±15%
Frequency（Hz）	45-66 Hz
Input power factor	≥0.99
Qurrent Harmonics(THDI)	≤5%
DC output
Efficiency	≥96%
Voltage（V）	200~750V
power	40KW	60KW	80KW	120KW	160KW	180KW
Current	80A	120A	160A	240A	320A	360A
Charging port	2
Cable Length	5M

Technical Parameter
Other Equipment Information	Noise（dB）	＜65
	Precision of steady current	≤±1%
	Voltage regulation accuracy	≤±0.5%
	Output current error	≤±1%
	Output voltage error	≤±0.5%
	Average current imbalance degree	≤±5%
	Screen	7 Inch industrial screen
	Chaiging Operation	Swipiing Card
	Energy Meter	MID certified
	LED Indicator	Green/yellow/red color for different status
	communication mode	ethernet network
	Cooling method	Air cooling
	Protection Grade	IP 54
	BMS Auxiliary Power Unit	12V/24V
	Reliability（MTBF）	50000
	Installation Method	Pedestal installation

Find out more >>>

EV Fast Charger Station CCS2/Chademo/Gbt EV DC Charger 120kw 160kw 180kw Floor-Standing Charging Pile
