CCS 1 Liquid Cooling Charging Connector Details | Rated voltage | 1000V Max. | Cable bending radius | ≤300mm |
| Voltage Current | 500A Max.(continue) | Max.Cable length | 6m Max. |
| Power | 500KW Max. | Cable weight | 1.5kg/m |
| Withstanding voltage: | 3500V AC /1min | Operating altitude | ≤2000m |
| Insulation resistance | Normal condiction ≥ 2000MΩ | Plastic part material | Thermoplastic |
| Meet the requirements of Chapter 21 of IEC 62196-1 under damp and hot conditions | Contact material | Copper | |
| Contact Plating | Silver plating | ||
| Temperature sensor | PT1000 | Cooling device size | 415mm*494mm*200mm(W*H*L） |
| Conductive operating temperature | 90℃ | Cooling device rate votage | 24V DC |
| Protection(connector) | IP55/ | Cooling device rated current | 12A |
| Protection(Cooling device) | Pump&Fan:IP54/Device no protection | Cooling device rated power | 288W |
| Insertion/withdrawal force | ≦100N | Cooling device noise | ≤58dB |
| Insertion/withdrawal cycles: | 10000（None load） | Cooling device weight | 20kg |
| Operating temperature | -30℃~50℃ | Coolant | Silicon oil |
Model selection and the standard wiring
| Charger Connnector Model | Rated Current | Cable specigication | Cable Color |
| BH-CSS1-EV500P | 350A | 2 X 50mm²+1 X 25mm² +6 X 0.75mm² | Black or customized |
| BH-CCS1-EV200P | 200A | 2 X 50mm²+1 X 25mm² +6 X 0.75mm² | Black or customized |
| BH-CCS1-EV150P | 150A | 2 X 50mm²+1 X 25mm² +6 X 0.75mm² | Black or customized |
| BH-CCS1-EV125P | 125A | 2 X 50mm²+1 X 25mm² +6 X 0.75mm² | Black or customized |
| BH-CCS1-EV80P | 80A | 2 X 50mm²+1 X 25mm² +6 X 0.75mm² | Black or customized |

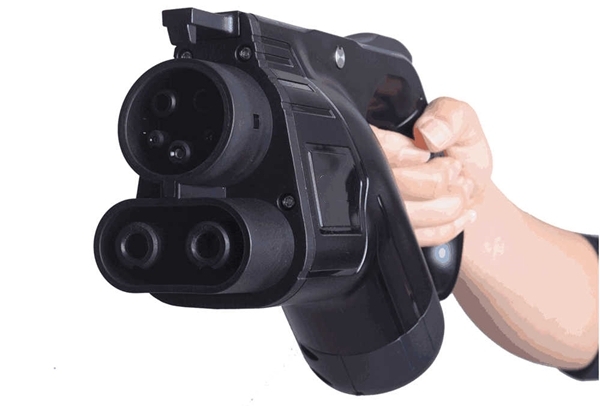

Charger Connector Key Features High Current Capacity: CCS 1 Charger plug Supports 80A、125A、150A 、200A And 350A configurations, ensuring rapid charging speeds for various electric vehicle models. Wide Voltage Range: DC Fast Charging CCS 1 Connector Operates at up to 1000V DC, enabling compatibility with high-capacity battery systems. Durable Construction: Made from premium materials with excellent heat resistance and robust mechanical strength, ensuring long-term reliability in demanding environments. Advanced Safety Mechanisms: Equipped with overload, over-temperature, and short-circuit protections to safeguard both the vehicle and the charging infrastructure. Ergonomic Design: Features an ergonomic handle for easy use and a secure connection during the charging process. Applications: The BeiHai Power CCS1 Plug is ideal for use in public DC fast charging stations, highway service areas, fleet charging depots, and commercial EV charging hubs. Its high current and voltage capabilities make it suitable for charging both passenger vehicles and commercial EVs, including trucks and buses. Compliance and Certification: This product complies with international CCS1 standards, ensuring compatibility with a wide range of electric vehicles and charging stations. It is tested to meet rigorous quality and safety standards, making it a dependable choice for fast-charging networks. Learn more about ev charging stations standards - try clicking here!
